Possible ways to upload file to dropbox?

[Mindaugas_Tamosiunas]

Hello,

Anyone could comment possible ways to add a file to dropbox? I’ve tried everything, the dropbox is configured correctly and I achieved file name appearing in the dropbox but it contains no actual file but a file path instead inside it (bytes size when the actual file are close to 1 mb, testing with .pdf file). The code below is full up untill dropbox (as I have sharepoint and S3 below). The issue is probably with “Api” action step, maybe it’s impossible to send actual file from API action, if not then how it’s done in wappler when not using native S3 support?:

{
  "name": "upload_dropbox",
  "module": "api",
  "action": "send",
  "options": {
    "url": "https://content.dropboxapi.com/2/files/upload",
    "method": "POST",
    "headers": {
      "Authorization": "{{('Bearer ' + get_storage_config.access_token)}}",
      "Dropbox-API-Arg": "{{'{\"path\":\"' + generate_storage_path + '\",\"mode\":\"add\",\"autorename\":false}'}}",
      "Content-Type": "application/octet-stream"
    },
    "data": "{{stat_file.path}}",
    "dataType": "binary",
    "responseType": "json"
  }

full code (without sharepoint and S3):

{
  "meta": {
    "$_POST": [
      {
        "type": "text",
        "name": "company_slug"
      },
      {
        "type": "text",
        "name": "document_title"
      },
      {
        "type": "number",
        "name": "document_category_list_id"
      },
      {
        "type": "number",
        "name": "parent_folder_id"
      },
      {
        "type": "number",
        "name": "seat_role_id"
      },
      {
        "type": "number",
        "name": "signing_terms_list_id"
      },
      {
        "type": "number",
        "name": "reminder_option_list_id"
      },
      {
        "type": "text",
        "name": "positions"
      },
      {
        "type": "file",
        "name": "document_file",
        "sub": [
          {
            "type": "text",
            "name": "name"
          },
          {
            "type": "text",
            "name": "type"
          },
          {
            "type": "number",
            "name": "size"
          },
          {
            "type": "text",
            "name": "error"
          }
        ],
        "outputType": "file"
      }
    \]
  },
  "exec": {
    "steps": [
      {
        "name": "identity",
        "module": "auth",
        "action": "identify",
        "options": {
          "provider": "darbogarantassecurity"
        },
        "output": true,
        "meta": []
      },
      {
        "name": "",
        "module": "auth",
        "action": "restrict",
        "options": {
          "provider": "darbogarantassecurity",
          "permissions": [
            "Employer"
          ],
          "loginUrl": "/login",
          "forbiddenUrl": "/login"
        }
      },
      {
        "name": "get_company_info",
        "module": "dbconnector",
        "action": "single",
        "options": {
          "connection": "darbogarantas",
          "sql": {
            "type": "SELECT",
            "columns": [
              {
                "table": "company",
                "column": "company_id"
              }
            ],
            "table": {
              "name": "company"
            },
            "primary": "company_id",
            "joins": [],
            "wheres": {
              "condition": "AND",
              "rules": [
                {
                  "id": "company.company_slug",
                  "field": "company.company_slug",
                  "type": "string",
                  "operator": "equal",
                  "value": "{{$_POST.company_slug}}",
                  "data": {
                    "table": "company",
                    "column": "company_slug",
                    "type": "text"
                  },
                  "operation": "="
                }
              ]
            }
          }
        },
        "output": true,
        "meta": [
          {
            "type": "number",
            "name": "company_id"
          }
        ],
        "outputType": "object"
      },
      {
        "name": "get_storage_config",
        "module": "dbconnector",
        "action": "single",
        "options": {
          "connection": "darbogarantas",
          "sql": {
            "type": "SELECT",
            "columns": [
              {
                "table": "company_storage_config",
                "column": "storage_provider"
              },
              {
                "table": "company_storage_config",
                "column": "access_token"
              },
              {
                "table": "company_storage_config",
                "column": "bucket_name"
              },
              {
                "table": "company_storage_config",
                "column": "site_url"
              },
              {
                "table": "company_storage_config",
                "column": "drive_id"
              }
            ],
            "table": {
              "name": "company_storage_config"
            },
            "primary": "company_storage_config_id",
            "joins": [],
            "wheres": {
              "condition": "AND",
              "rules": [
                {
                  "id": "company_storage_config.company_id",
                  "field": "company_storage_config.company_id",
                  "type": "double",
                  "operator": "equal",
                  "value": "{{get_company_info.company_id}}",
                  "data": {
                    "table": "company_storage_config",
                    "column": "company_id",
                    "type": "number"
                  },
                  "operation": "="
                },
                {
                  "id": "company_storage_config.is_active",
                  "field": "company_storage_config.is_active",
                  "type": "boolean",
                  "operator": "equal",
                  "value": "{{true}}",
                  "data": {
                    "table": "company_storage_config",
                    "column": "is_active",
                    "type": "boolean"
                  },
                  "operation": "="
                }
              ]
            }
          }
        },
        "output": true,
        "meta": [
          {
            "type": "text",
            "name": "storage_provider"
          },
          {
            "type": "text",
            "name": "access_token"
          },
          {
            "type": "text",
            "name": "bucket_name"
          },
          {
            "type": "text",
            "name": "site_url"
          },
          {
            "type": "text",
            "name": "drive_id"
          }
        ],
        "outputType": "object"
      },
      {
        "name": "upload_to_temp",
        "module": "upload",
        "action": "upload",
        "options": {
          "path": "{{'/temp/company_documents/' + get_company_info.company_id}}",
          "fields": "{{$_POST.document_file}}"
        },
        "output": true,
        "meta": [
          {
            "name": "name",
            "type": "text"
          },
          {
            "name": "path",
            "type": "text"
          },
          {
            "name": "url",
            "type": "text"
          },
          {
            "name": "type",
            "type": "text"
          },
          {
            "name": "size",
            "type": "number"
          },
          {
            "name": "error",
            "type": "number"
          }
        ],
        "outputType": "file"
      },
      {
        "name": "validate_file",
        "module": "validator",
        "action": "validate",
        "options": {
          "data": [
            {
              "name": "validate_type",
              "value": "{{upload_to_temp.type}}",
              "rules": {
                "core:pattern": {
                  "param": "^(application\\/pdf|image\\/.+)$"
                }
              }
            },
            {
              "name": "validate_size",
              "value": "{{upload_to_temp.size}}",
              "rules": {
                "core:max": {
                  "param": 52428800
                }
              }
            }
          ]
        }
      },
      {
        "name": "generate_storage_path",
        "module": "core",
        "action": "setvalue",
        "options": {
          "value": "{{'/company/' + get_company_info.company_id + '/documents/' + NOW.formatDate('yyyyMMdd_HHmmss') + '_' + upload_to_temp.name}}"
        },
        "output": true,
        "meta": [],
        "outputType": "text"
      },
      {
        "name": "",
        "module": "core",
        "action": "condition",
        "options": {
          "if": "{{get_storage_config.storage_provider=='dropbox'}}",
          "then": {
            "steps": [
              {
                "name": "stat_file",
                "module": "fs",
                "action": "stat",
                "options": {
                  "path": "{{upload_to_temp.path}}"
                },
                "output": true,
                "outputType": "object",
                "meta": [
                  {
                    "name": "type",
                    "type": "text"
                  },
                  {
                    "name": "name",
                    "type": "text"
                  },
                  {
                    "name": "path",
                    "type": "text"
                  },
                  {
                    "name": "url",
                    "type": "text"
                  },
                  {
                    "name": "size",
                    "type": "number"
                  },
                  {
                    "name": "folder",
                    "type": "text"
                  },
                  {
                    "name": "basename",
                    "type": "text"
                  },
                  {
                    "name": "extension",
                    "type": "text"
                  },
                  {
                    "name": "created",
                    "type": "date"
                  },
                  {
                    "name": "accessed",
                    "type": "date"
                  },
                  {
                    "name": "modified",
                    "type": "date"
                  }
                ]
              },
              {
                "name": "upload_dropbox",
                "module": "api",
                "action": "send",
                "options": {
                  "url": "https://content.dropboxapi.com/2/files/upload",
                  "method": "POST",
                  "headers": {
                    "Authorization": "{{('Bearer ' + get_storage_config.access_token)}}",
                    "Dropbox-API-Arg": "{{'{\\"path\":\"' + generate_storage_path + '\",\"mode\":\"add\",\"autorename\":false}'}}",
                    "Content-Type": "application/octet-stream"
                  },
                  "data": "{{stat_file.path}}",
                  "dataType": "binary",
                  "responseType": "json"
                },
                "output": true,
                "meta": [
                  {
                    "name": "id",
                    "type": "text"
                  },
                  {
                    "name": "name",
                    "type": "text"
                  },
                  {
                    "name": "path_display",
                    "type": "text"
                  },
                  {
                    "name": "size",
                    "type": "number"
                  }
                ],
                "outputType": "object"
              },
              {
                "name": "cleanup_temp_dropbox",
                "module": "fs",
                "action": "remove",
                "options": {
                  "path": "{{upload_to_temp.path}}"
                },
                "outputType": "boolean"
              },
              {
                "name": "insert_document_dropbox",
                "module": "dbupdater",
                "action": "insert",
                "options": {
                  "connection": "darbogarantas",
                  "sql": {
                    "type": "insert",
                    "values": [
                      {
                        "table": "company_documents",
                        "column": "company_id",
                        "type": "number",
                        "value": "{{get_company_info.company_id}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "document_name",
                        "type": "text",
                        "value": "{{upload_to_temp.name}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "document_title",
                        "type": "text",
                        "value": "{{$_POST.document_title}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "file_path",
                        "type": "text",
                        "value": "{{upload_dropbox.path_display || generate_storage_path}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "file_size",
                        "type": "number",
                        "value": "{{upload_to_temp.size}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "mime_type",
                        "type": "text",
                        "value": "{{upload_to_temp.type}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "storage_provider",
                        "type": "text",
                        "value": "dropbox"
                      },
                      {
                        "table": "company_documents",
                        "column": "storage_path",
                        "type": "text",
                        "value": "{{upload_dropbox.path_display || generate_storage_path}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "storage_file_id",
                        "type": "text",
                        "value": "{{upload_dropbox.id || 'id_pending'}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "parent_folder_id",
                        "type": "number",
                        "value": "{{$\_POST.parent_folder_id || null}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "document_category_list_id",
                        "type": "number",
                        "value": "{{$\_POST.document_category_list_id || null}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "seat_role_id",
                        "type": "number",
                        "value": "{{$\_POST.seat_role_id || null}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "signing_terms_list_id",
                        "type": "number",
                        "value": "{{$\_POST.signing_terms_list_id || null}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "reminder_option_list_id",
                        "type": "number",
                        "value": "{{$\_POST.reminder_option_list_id || null}}"
                      },
                      {
                        "table": "company_documents",
                        "column": "added_by_user_id",
                        "type": "number",
                        "value": "{{identity}}"
                      }
                    ],
                    "table": "company_documents",
                    "returning": "company_document_id"
                  }
                },
                "output": true,
                "meta": [
                  {
                    "type": "number",
                    "name": "company_document_id"
                  },
                  {
                    "name": "affected",
                    "type": "number"
                  }
                ]
              }
            ]
          }
        },
        "outputType": "boolean"
      }

[franse]

Hello!

@Mindaugas_Tamosiunas

maybe it’s impossible to send actual file from API action

At the moment, you can't use the API component to send files, you can use the extension made by sid:

API File Upload Action - NodeJS & PHP [Open Source]

Yo, Wappler provides a default API Action module in Server Action to call APIs. But it does not have the option to upload files. With this custom module, we extend Wappler to have this option as well. We have provided as many options we could from the original component here. This module is available for both PHP & NodeJS server models. [image] Almost all options are explained using help texts. Please make sure to read them. Here is the full source and documentation: NodeJS: https://gitlab…

Made a test few months ago with dropbox and all was working fine, will send you some info later if you still need some help

[Mindaugas_Tamosiunas]

Hi, thanks, yes please send me if you can!

[franse]

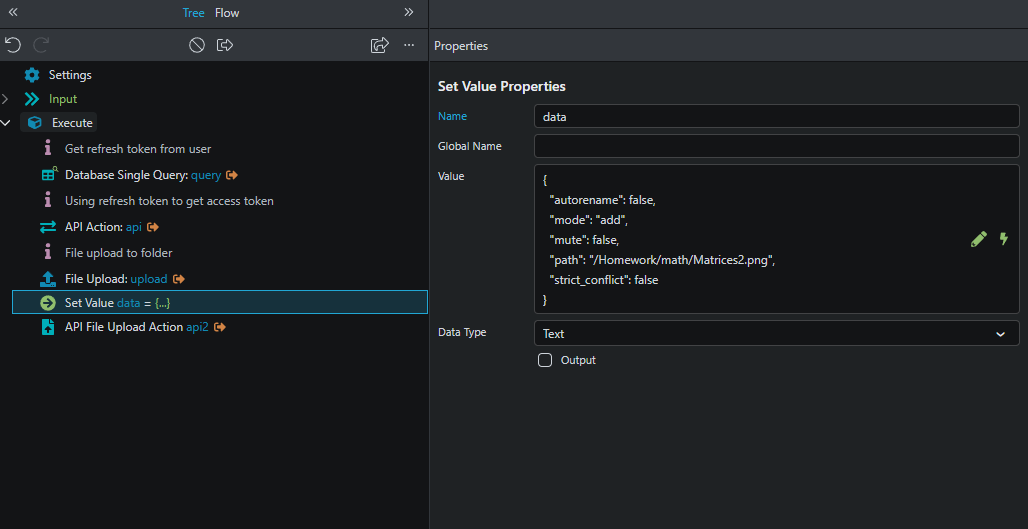

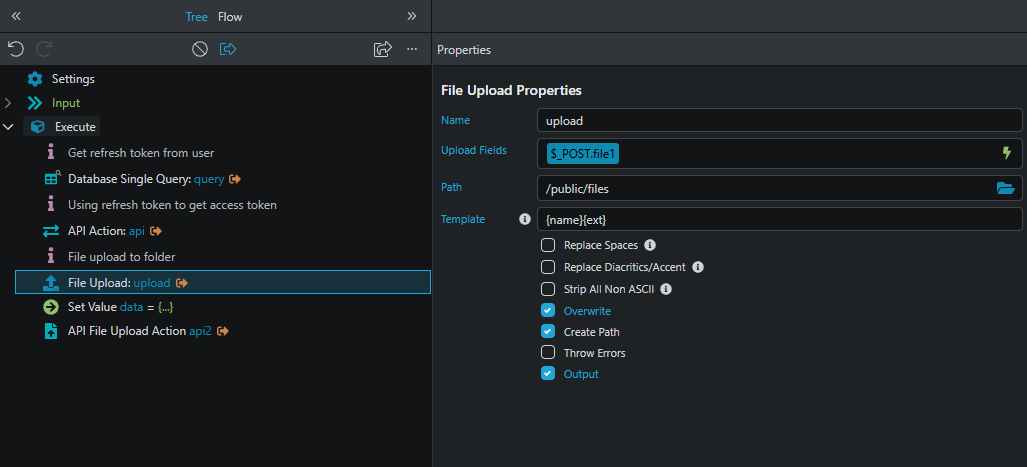

I don't remember exactly what I was doing here, but it was a test and it was working fine:

[Mindaugas_Tamosiunas]

@franse thank you you saved me, I made it work! but is this a realiable way to save files long term, probably same technique should be used if switching to sharepoint? S3 is probably recommended one ?

[franse]

It all depends on what do you need, this method is great for uploading files to users dropbox account, you can get their access token and do the logic there..

S3 is great.
Tutorials about it are very complete:

Using S3 Connector

What is S3 Connector S3 Connector allows you to connect to AWS and Digital Ocean cloud storage services, create buckets, list/put/get/delete files, create signed URLs and more. Now as you know how to setup S3 on AWS and Digital Ocean you are ready to use the S3 Connector in Server Connect. Setting up S3 Provider Using the S3 Connector is really easy. First create a Server Action: [Screenshot_22] Right click steps: [Screenshot_23] Select S3 Connector and click S3 Provider: [Screensho…

[Hyperbytes]

Probably be a good one for a custom extension.
